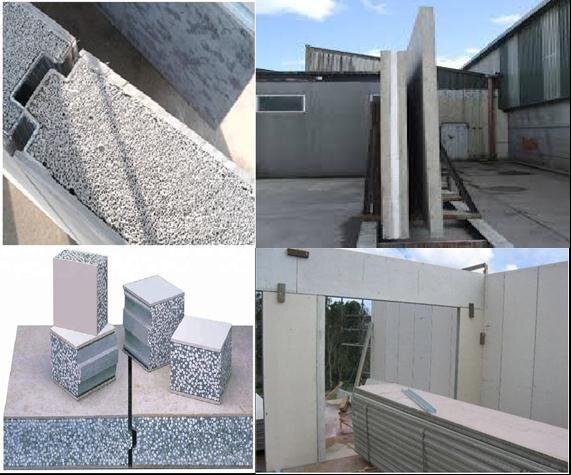

Hanmero Lightweight Wall Solution revolutionizes construction with superior efficiency and performance. Our advanced composite sandwich panels combine fiber-reinforced surfaces with an engineered EPS core, delivering exceptional lightweight properties that reduce structural load and accelerate installation by up to 50%. These energy-saving panels provide excellent thermal insulation, fire resistance, and durability while significantly lowering labor costs and project timelines. Ideal for commercial, institutional, and residential applications, Hanmero panels offer the perfect sustainable alternative to traditional brick and concrete construction methods.
Applications of Hanmero EPS Cement Sandwich Panels:
1. Industrial & Commercial Buildings
The largest and most traditional application market for EPS sandwich panels. Their rapid installation significantly shortens project timelines.
Factories & Warehouses: Used for exterior walls, interior partitions, and roofs. Their thermal insulation helps maintain stable temperatures, reducing heating and cooling costs. The lightweight nature minimizes structural load requirements.
Cold Storage Facilities: Excellent thermal insulation makes them ideal for cold storage and fresh-keeping warehouses, ensuring energy-efficient temperature maintenance.
Logistics Centers: Perfect for large-scale storage spaces requiring quick construction and low maintenance.
Shopping Malls & Supermarkets: Applied in non-load-bearing walls, partitions, and decorations, offering a smooth appearance and easy cleaning.
2. Civil & Residential Buildings
Increasingly popular in modern residential construction for their insulation, lightweight, and energy-efficient properties.
Self-Built Homes & Villas: Used as exterior wall insulation and interior partitions, significantly improving energy efficiency (e.g., passive house standards) and comfort.

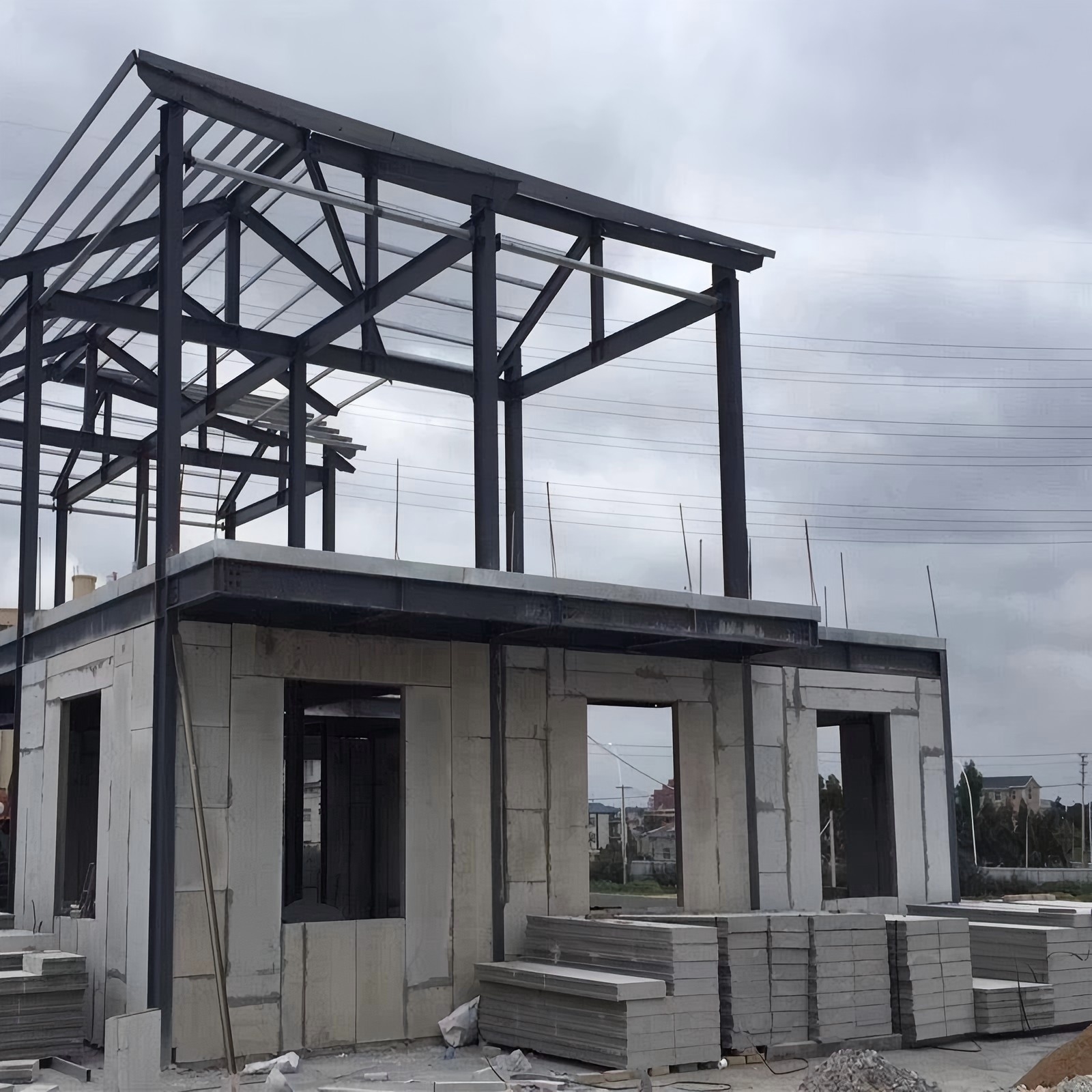

Low & Multi-Story Residential Buildings: Serve as infill walls in frame structures, reducing building weight and enhancing earthquake resistance.
Rural Renovation Projects: Quick installation and low technical requirements make them ideal for new rural construction.
3. Public & Agricultural Buildings
Schools, Hospitals & Offices: Provide sound insulation and
Stadiums & Exhibition Halls: Lightweight and high-performance, ideal for large-span enclosures.
Agricultural Greenhouses & Livestock Farms: Used in insulated animal husbandry sheds and flower greenhouses, offering stable environments to increase productivity.
4. Temporary & Relocatable Buildings
Site Offices & Dormitories: Easy to install, dismantle, and reuse, meeting the demands of fast and recyclable temporary structures.
Prefabricated Modular Homes: Core wall material for modular construction, enabling factory prefabrication and on-site assembly, boosting industrialization.
Guard Booths & Kiosks: Suitable for small, movable facilities.
5. Other Special Applications
Noise Barriers: Used as sound barriers along highways and railways to reduce traffic noise pollution.
Interior Decoration & Partitions: Create offices and meeting rooms in large buildings with clean, efficient dry construction.
In summary, EPS cement sandwich panels are versatile, high-performance modern building materials. They are widely used in non-load-bearing enclosures requiring lightweight, thermal insulation, and rapid construction, driving industrialization and energy efficiency in construction.

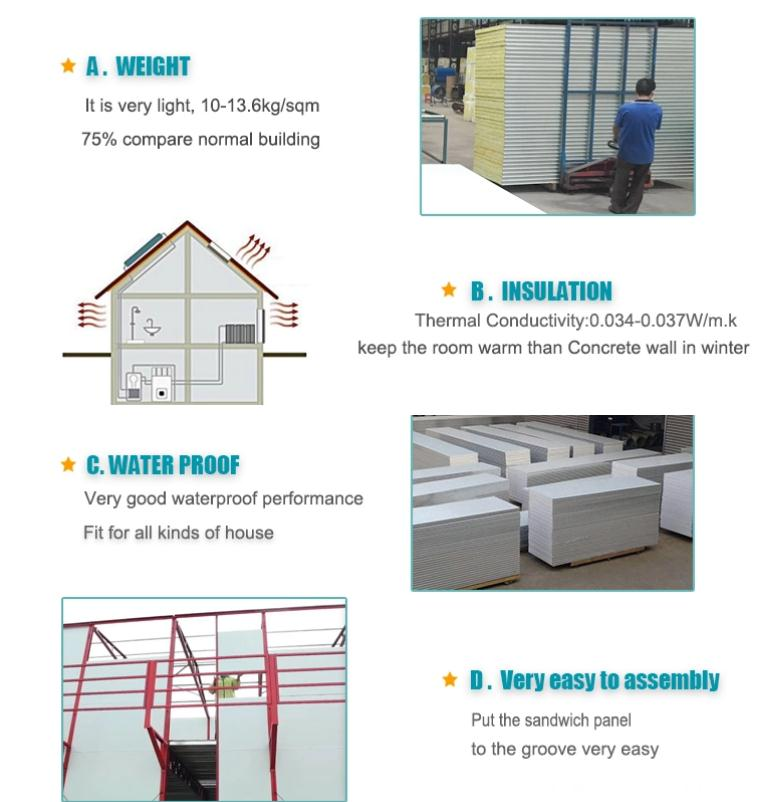

Advantages of Hanmero EPS Cement Sandwich Wall Panels
Thermal Insulation & Warmth Retention: Provides excellent heat insulation, helping maintain stable indoor temperatures.
Fireproof & High-Temperature Resistant: Nonflammable even when exposed to fire or boiling water for over 4 hours.
Moisture Resistant & Waterproof: Effectively resists humidity and prevents water penetration.
Superior Sound Insulation: The specialized material and interlocking concave-convex groove design significantly reduce noise transmission.
Saves Time & Cost: Cuts installation and wall decoration time and expenses by up to 40%.
Highly Workable & Flexible
Cut-to-Size: Can be easily customized to any required dimension.
Pre-Grooved: Allows convenient embedding of electrical wires.
Strong Hanging Capacity: Supports heavy items such as TVs, air conditioners, and heaters.

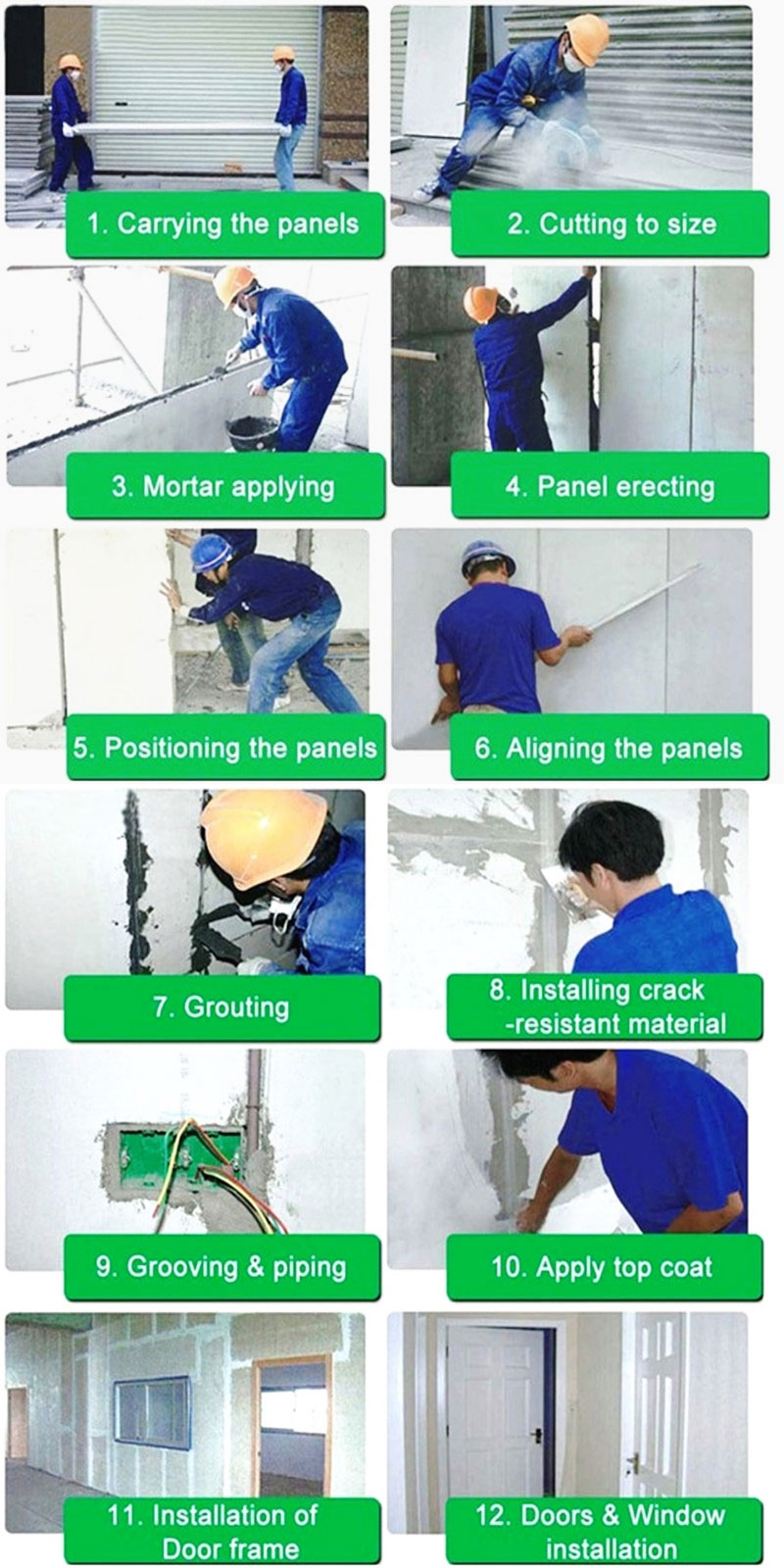

3. EPS Cement Sandwich Panel Installation Guide
Step 1: Set Baseline & Position Panel
Mark base lines on the floor to ensure vertical alignment with the beam. Two people can easily carry each panel into position.
Step 2: Cut the Panel

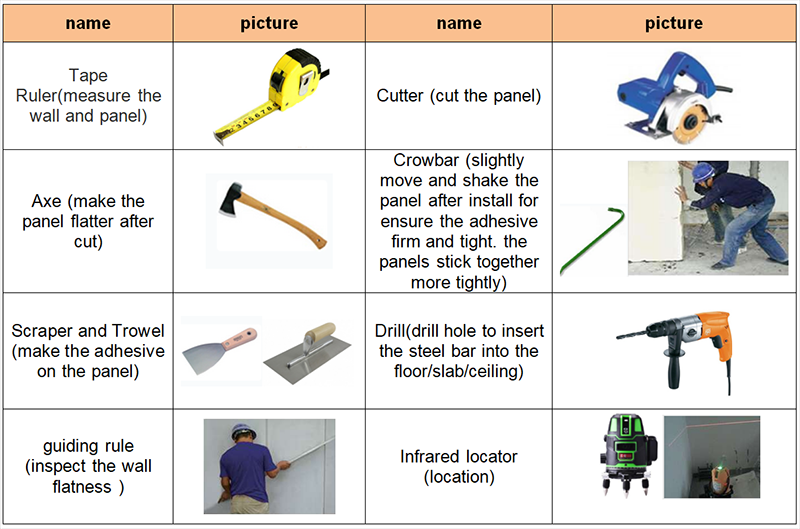

Use a hand-held electric saw to cut panels to required dimensions based on wall specifications.

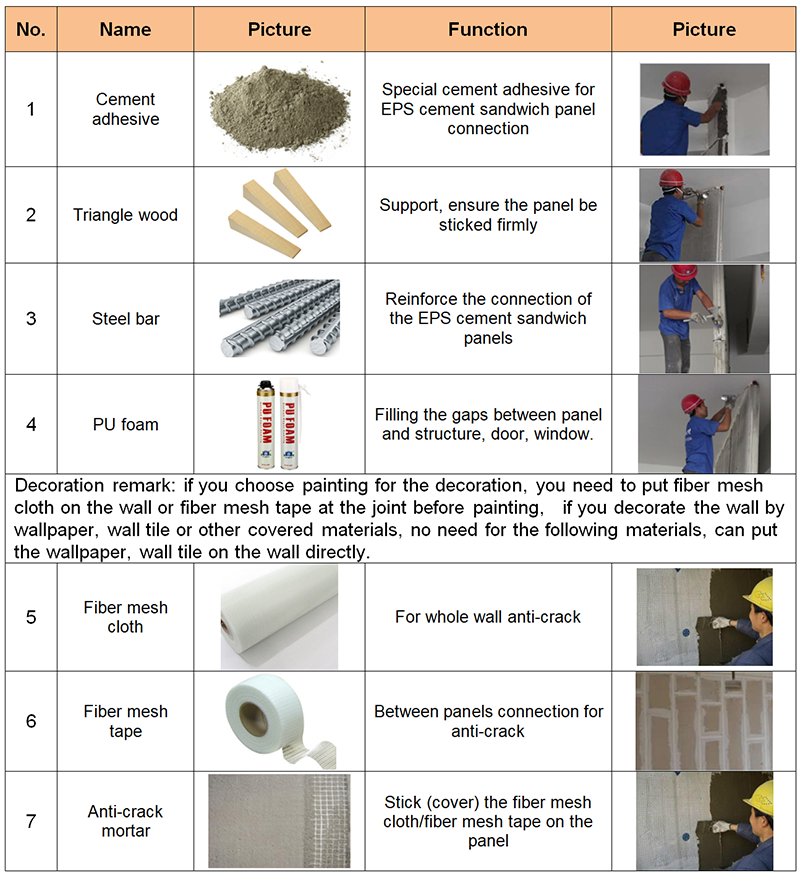

Step 3: Apply Cement Adhesive
Mix cement adhesive with water per instructions. Apply the mixture into panel grooves and along the wall baseline.
Step 4: Install the Panel
Lift panel to installation line. Use a crowbar to adjust and ensure tight adhesive contact. Secure temporarily with wood wedges.
Step 5: Correct & Fix the Panel
Check vertical and level alignment with a guiding rule. Insert steel bars between panels to reinforce connection and strength.
Step 6: Fill Gaps
After 24 hours, inspect for gaps between panels or ceilings. Fill with additional cement adhesive or PU foam.
Step 7: Insert Wires
Cut grooves for electrical wires and switch boxes using electric saw. Cover with cement adhesive and anti-crack fiber mesh.
Step 8: Apply Anti-Crack Material
3-5 days after installation, install anti-crack tape on joints or apply fiber mesh cloth across full wall (tape is lower cost).
Step 9: Plaster (If Required)
Plaster only if painting will be applied. No plastering needed for tile, PVC, wallpaper, or other covering materials.
Step 10: Install Doors & Windows
Panels are compatible with all types of doors and windows.
Step 11: Decorate
Finish with ceramic tile, wood panel, PVC sheet, paint, or any other material. Plastering is only necessary for painted surfaces.

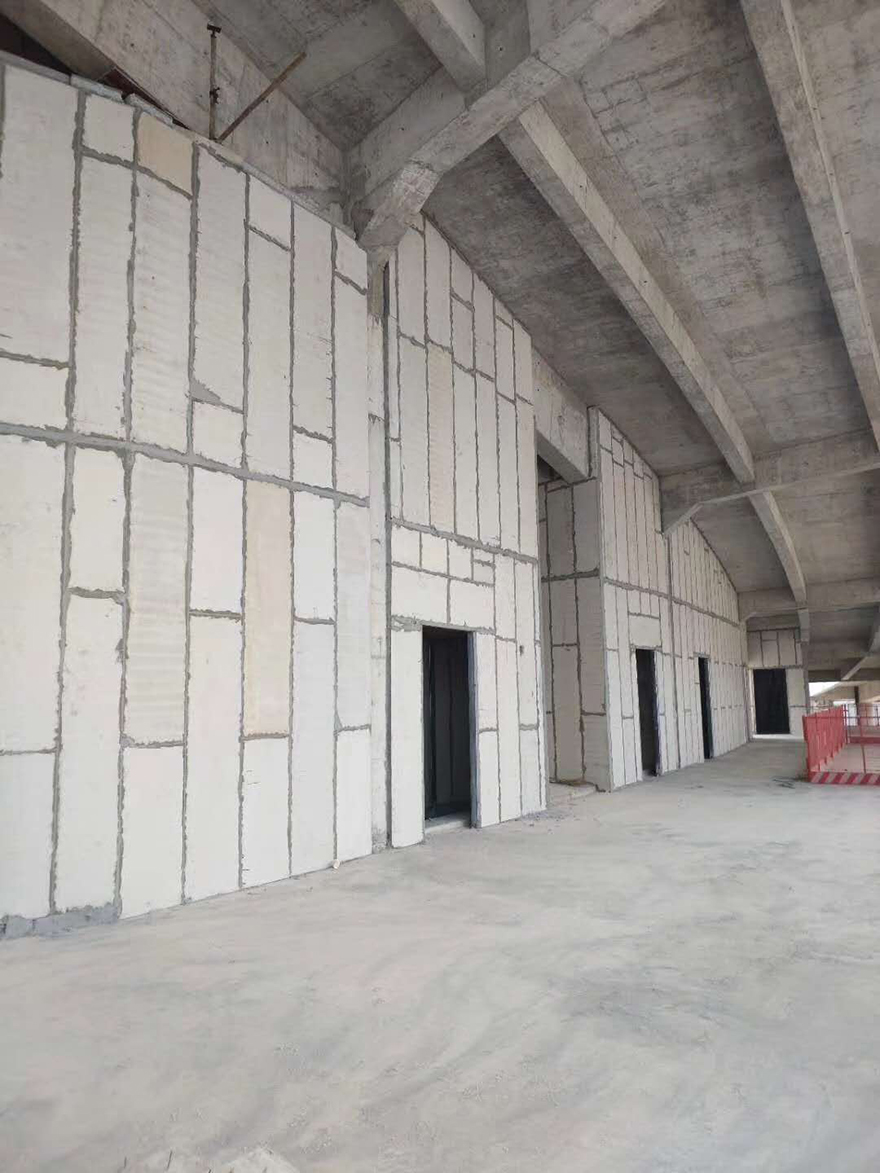

EPS cement sandwich panel can be used for high-rising interior wall, exterior wall, partition wall.
Wuhan Hanmero Building Materials Co., Ltd. is a high-tech enterprise specializing in the design, research, development, production, and export of eco-friendly building materials, including wallpapers, custom murals, light weight composite sandwich panel, flexible tiles and related accessories, and ecological energy-saving integrated houses. Established in 2009, the company has its headquarters located in Wuhan City, the hub of nine provinces, with a production base in Hubei Jingshan Economic Development Zone that benefits from convenient transportation.
The company has a professional R&D team, and has collaborated with domestic universities such as Wuhan University of Science and Technology, Wuhan Institute of Technology, and Hubei University, to form a perfect management and R&D system. The company holds 28 international trademarks, 12 national patents, and has published 38 papers in professional journals, making it an international leader in the field of building materials.
At Hanmero, design, environmental protection, and quality are the three core concepts. The company is dedicated to serving customers wholeheartedly and promoting eco-friendly and energy-saving products and technologies in both the Chinese and international markets. Hanmero's unique technology and design, integrated with the concept of green ecology, are widely used in the decoration of homes, hotels, offices, schools, and office buildings.
FAQ
Q1: How long will it take for you to deliver the goods?
A1: Normally, we can deliver the order within 15-25 days after receiving the deposit payment. For urgent orders, we can speed up the production to meet the client's requirements. For large orders, we can discuss the delivery time further.
Q2: Can you provide samples for testing?
A2: Yes, of course. We can provide free small samples of the required thickness.
Q3: Do you have any certificates or qualifications?
A3: Yes, we have obtained CE & ISO certificates, as well as a full set of wall panel performance testing reports, including thermal insulation, soundproofing, strength testing, and fireproofing (our sandwich panel can withstand temperatures of up to 1000℃ for more than 4 hours).
Q4: What are the disadvantages of your sandwich panel?
A4: Our panel is a non-load bearing wall panel, so when building several floors or high-rise buildings, it must be combined with a steel structure or concrete structure.
Q5: Will the panel be damaged by climate change over time?
A5: Our panel will not be damaged by climate change or insects. However, for buildings with more than 2 stories or high-rise buildings, this panel needs to be combined with steel or concrete structures. The lifespan of the panel is about 50-70 years.
Q6: How do you guarantee the quality of your products, and is there a warranty available for the products we order?
A6: The physical properties of this panel will not change over time. Generally speaking, it may be damaged during transport, improper use, or man-made damage.

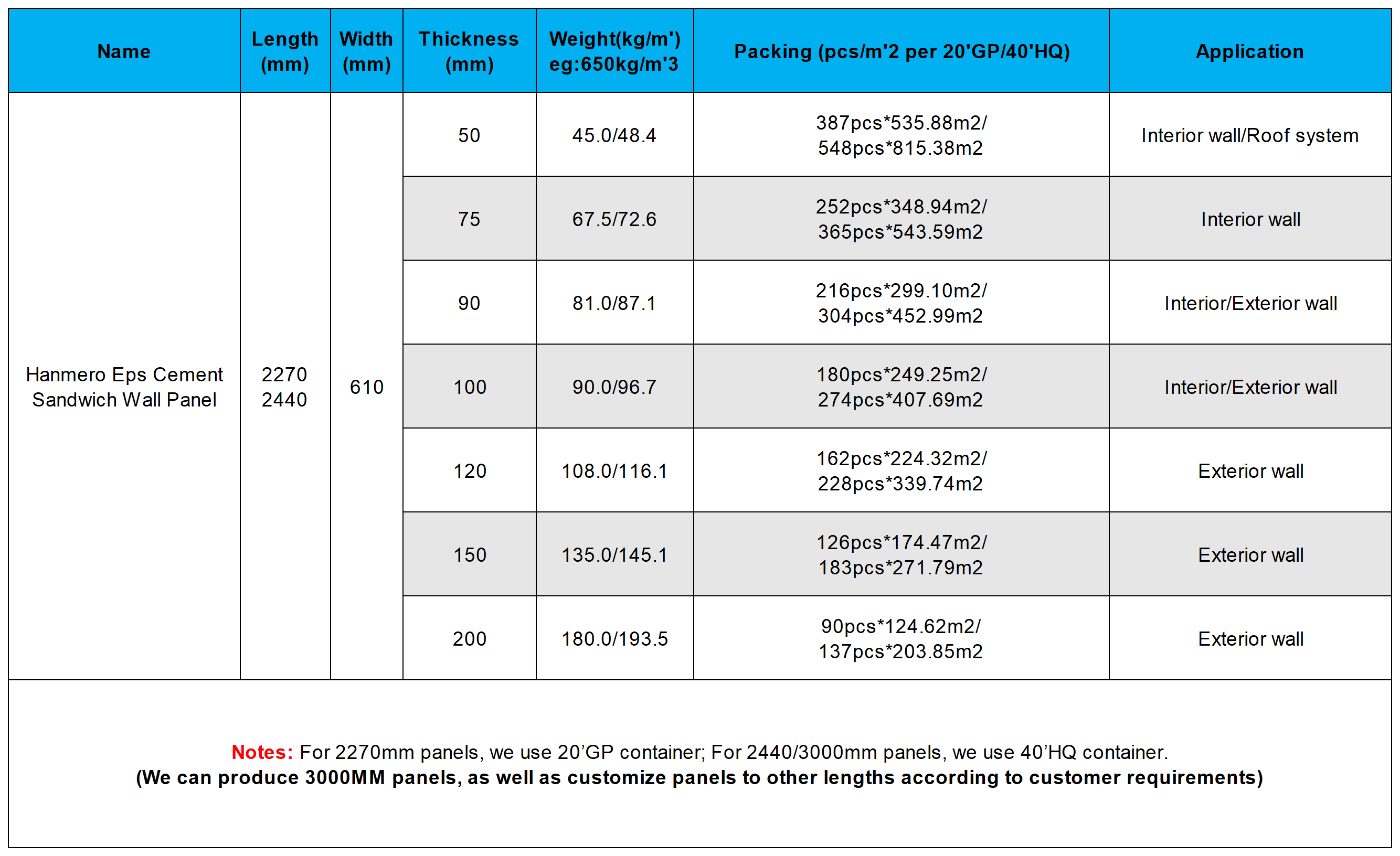

Q7: What is your recommendation for usage (for what kind of construction can each panel be used according to the thickness)?
A7: Roof: 60mm panel
Interior Wall: 60mm, 75mm, 90mm, 100mm
Exterior Wall: 100mm, 120mm, 150mm, etc.
(Note: this is only for reference. Different clients may have different requirements and practices.)
Q8: What is the thickness of the calcium silicate board independently?
A8: The thickness of the face board (calcium silicate board or fiber cement board) is about 4.5mm-5mm.
