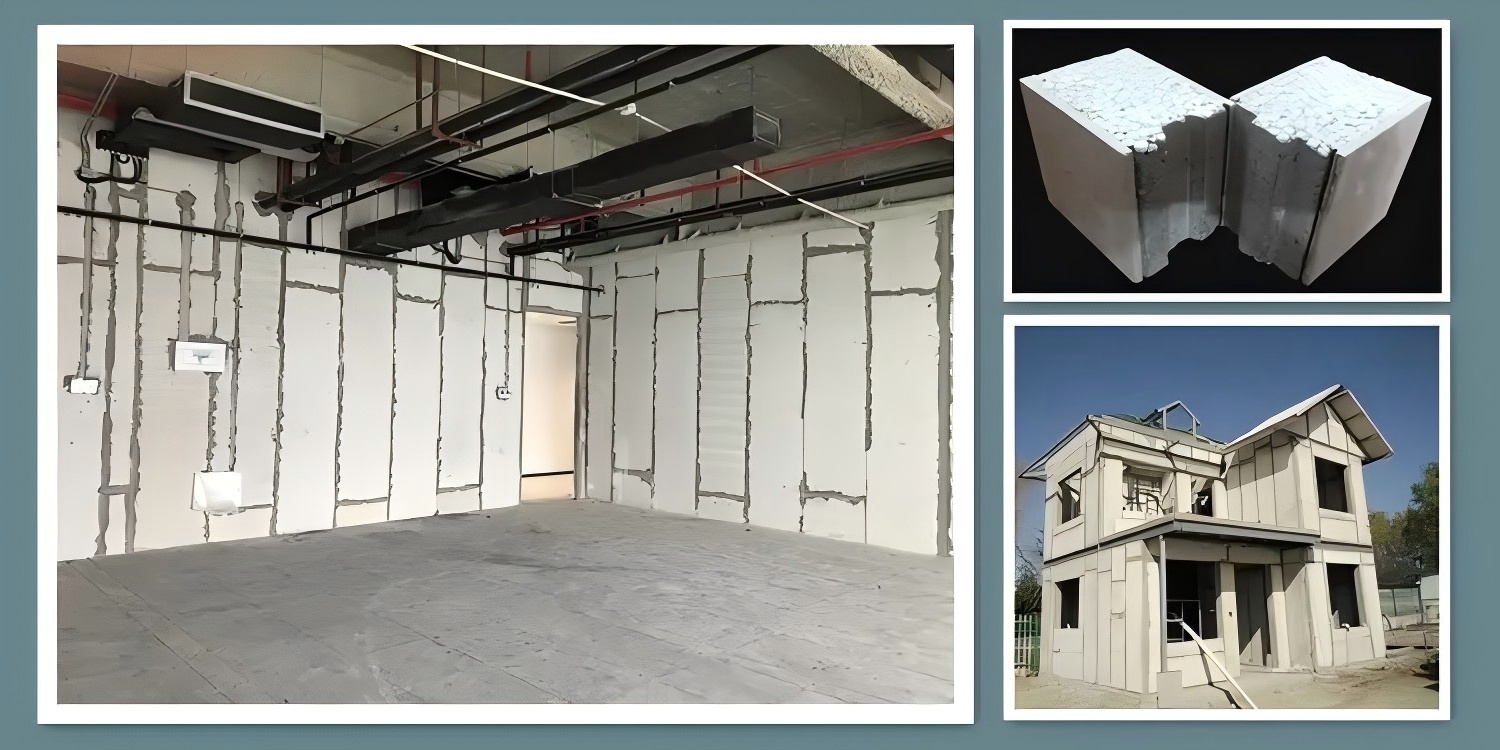

Hanmero Advanced Wall System revolutionizes construction with its lightweight composite sandwich panel design. Combining high-strength fiber-reinforced surfaces with an EPS insulation core, this energy-saving solution delivers exceptional thermal performance and fire resistance. Perfect for commercial and institutional applications, our panels enable faster installation in offices, schools, and hospitals while reducing structural load and energy costs. The sustainable alternative to traditional brick and gypsum construction.

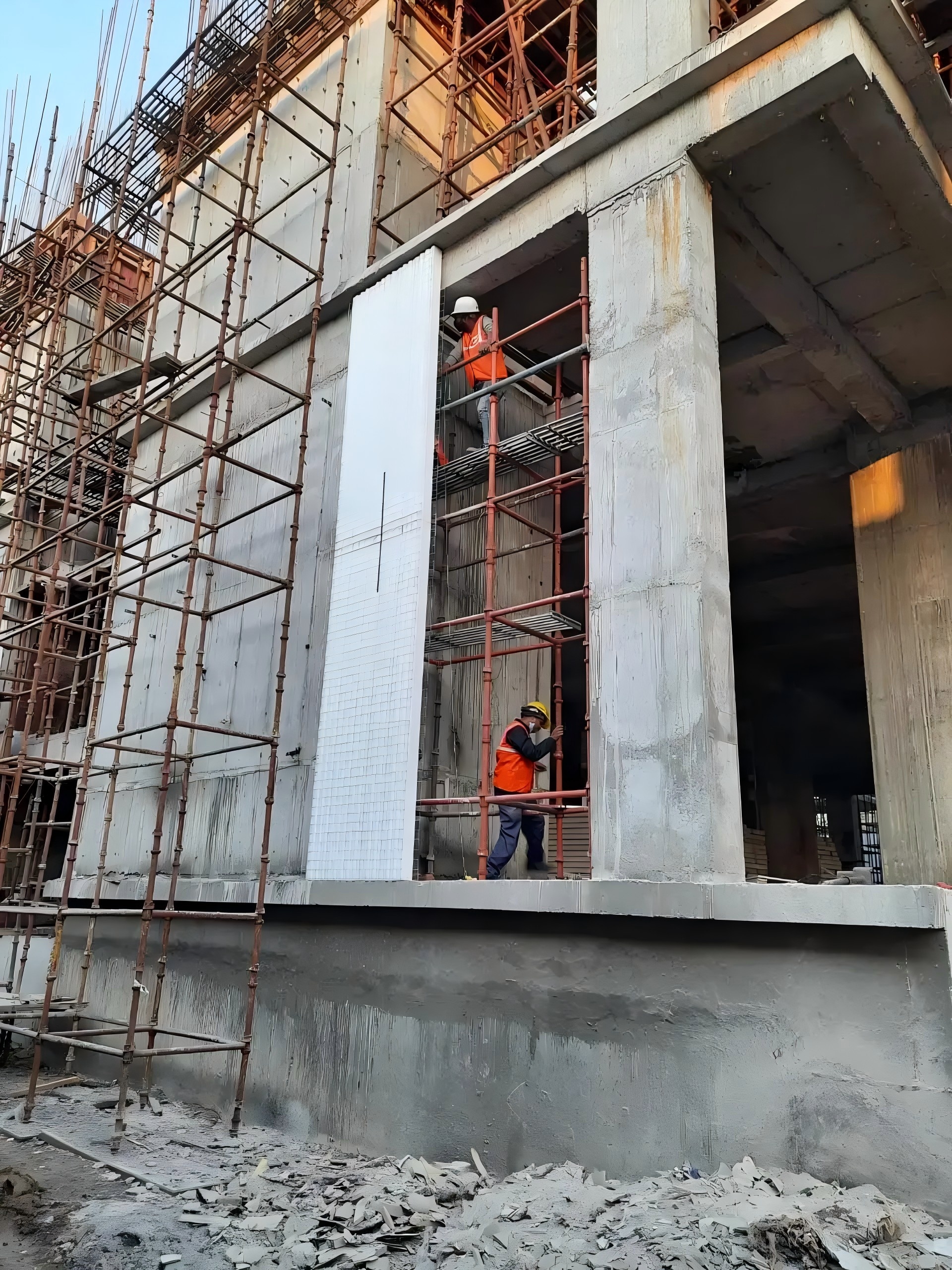

1. Industrial & Commercial Construction
This represents the most traditional and largest application market for these panels.
Warehouses & Factories: Used for exterior walls, interior partitions, and roofing. Their
Office Buildings & Business Centers: Ideal as exterior cladding or interior partitions. Their fast installation significantly accelerates project timelines.
Shopping Malls & Supermarkets: Perfect for subdividing retail spaces and serving as perimeter enclosures.
2. Residential Building Applications
Their use in modern residential construction is rapidly expanding.

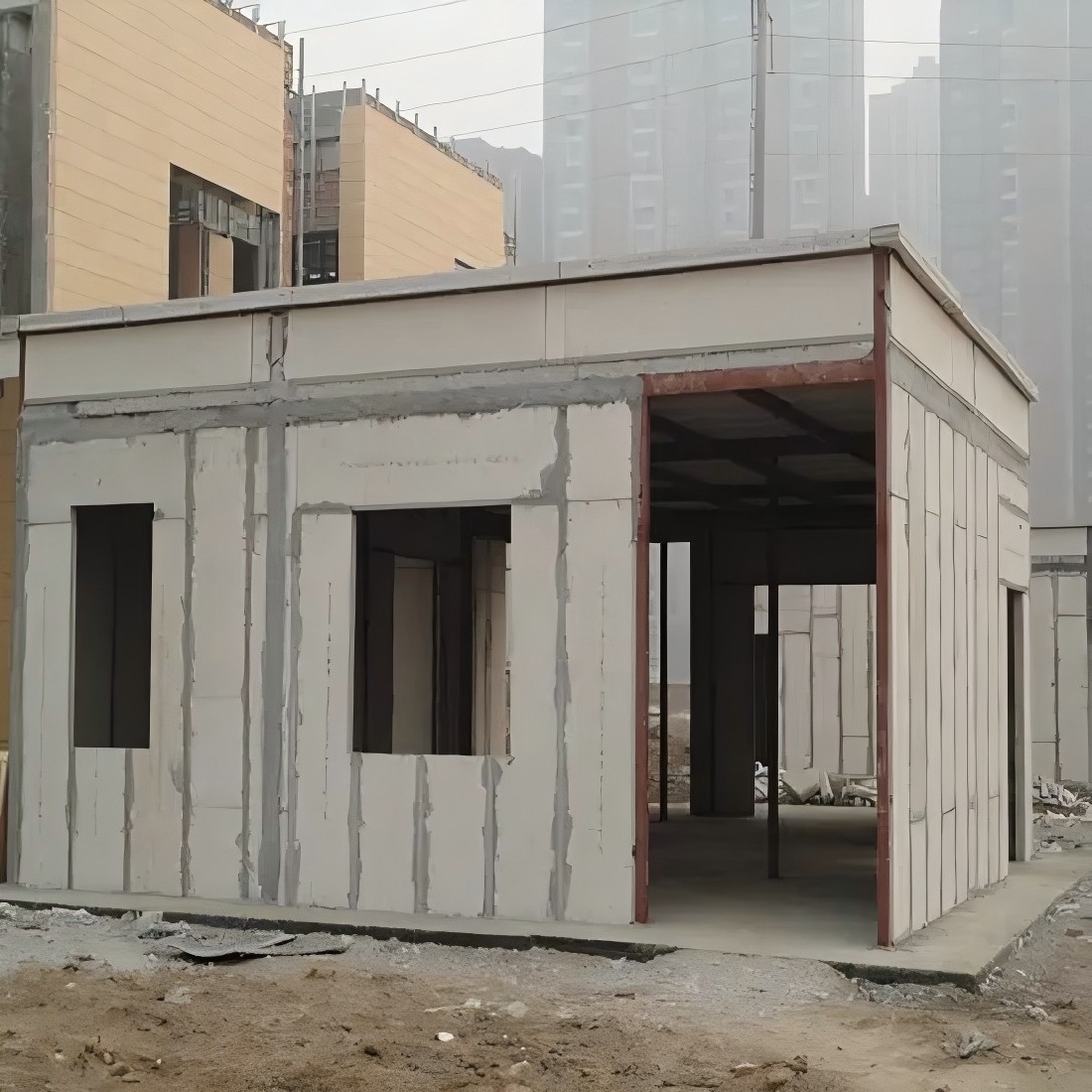

Low & Mid-Rise Housing: An excellent choice for self-built homes, villas, and new rural construction. Used in exterior walls, interior partitions, and floor slabs. Their integrated insulation structure provides immediate thermal efficiency without the need for additional external insulation, eliminating the risk of cladding detachment.
Steel
Building Retrofits: Suitable for energy-efficient exterior wall upgrades and interior space division in existing buildings. Their lightweight nature minimizes additional structural load.
3. Temporary & Relocatable Buildings
Site Accommodations: Used for site offices, worker dormitories, and canteens. Panels are reusable, eco-friendly, and cost-effective.
Prefab Modular Units: A high-performance upgrade over traditional container and portable houses. Offers far superior insulation and comfort, widely used in construction camps, remote workstations, and tourist lodgings.
Emergency & Disaster Relief Housing: Quickly deployed after earthquakes or floods. These dry-assembled panels provide rapid shelter with reliable
4. Specialized & Agricultural Construction
Cold Storage & Climate-Controlled Warehouses: A core application area. Excellent thermal insulation (low K-value) and airtightness make these panels ideal for energy-efficient cold storage solutions.
Cleanrooms: Used in food, pharmaceutical, and electronics industries. The smooth, dust-resistant surface is easy to sterilize and meets strict hygiene standards.
Livestock & Poultry Farms: Modern barns and coops benefit from enhanced insulation, supporting animal health and productivity. Panels are also corrosion-resistant and easy to clean.
Agricultural Greenhouses: As wall material for greenhouses, they provide better insulation than brick and faster installation.
5. Other Applications
Noise Barriers: Used along highways and railways to reduce traffic noise pollution.
Interior Renovation: Applied in partitions, suspended ceilings, and more.

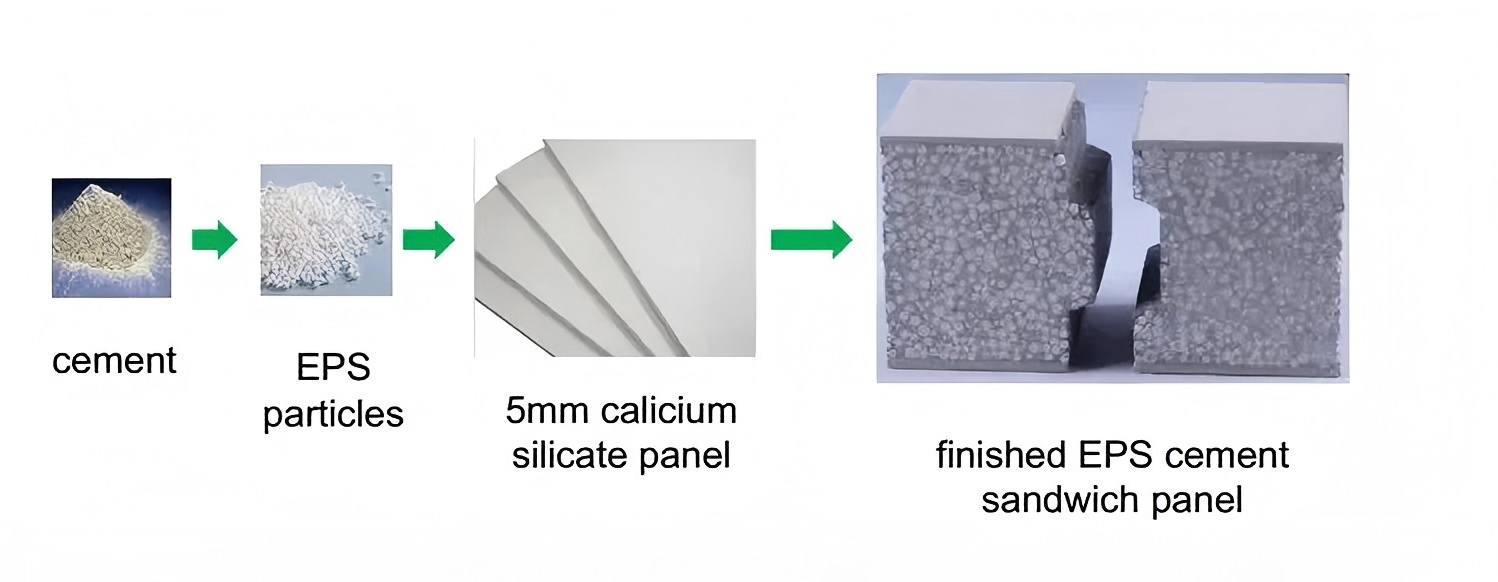

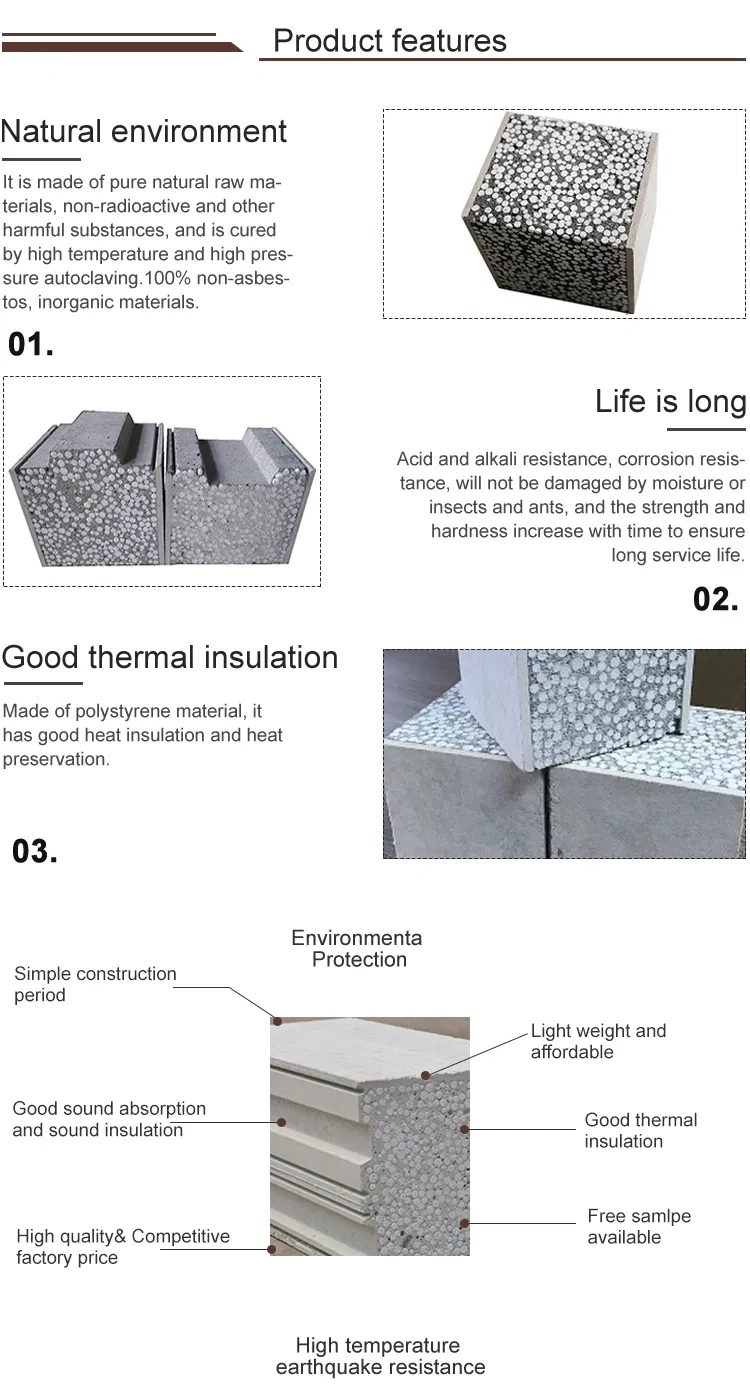

Advantages of Hanmero EPS Cement Sandwich Wall Panels
1. 100% Waterproof & Damp-Proof
Precast concrete partition wall panels provide excellent resistance against moisture and water penetration, making them ideal for high-humidity areas such as bathrooms, kitchens, and basements. This enhances indoor air quality and prevents mold growth.
2. Superior Fire Resistance
Formulated with a core of non-combustible materials including calcium silicate board, these panels deliver outstanding fire protection. They can withstand temperatures up to 1000°C and offer a fire resistance rating of up to 4 hours, significantly improving building safety and compliance with fire regulations.
3. Excellent Thermal & Sound Insulation
Thanks to its expanded polystyrene (EPS) core, the panel delivers superior thermal efficiency and acoustic performance. It helps maintain stable indoor temperatures—keeping interiors cooler in summer and warmer in winter—while significantly reducing external noise, ensuring a quieter and more comfortable living or working environment.
4. High Structural Strength
Each panel features a reinforced framework with steel wire trusses and welded wire mesh spanning its full length. This creates a continuously reinforced configuration that offers exceptional load-bearing capacity, impact resistance, and structural integrity—ideal for modern high-performance buildings.
5. Easy & Fast Installation
The lightweight design and modular structure simplify handling and installation. Utility pipes and electrical conduits can be easily embedded within the panels, speeding up construction timelines, reducing labor costs, and offering greater flexibility for interior layouts.
6. Space-Saving & Multiple Thickness Options

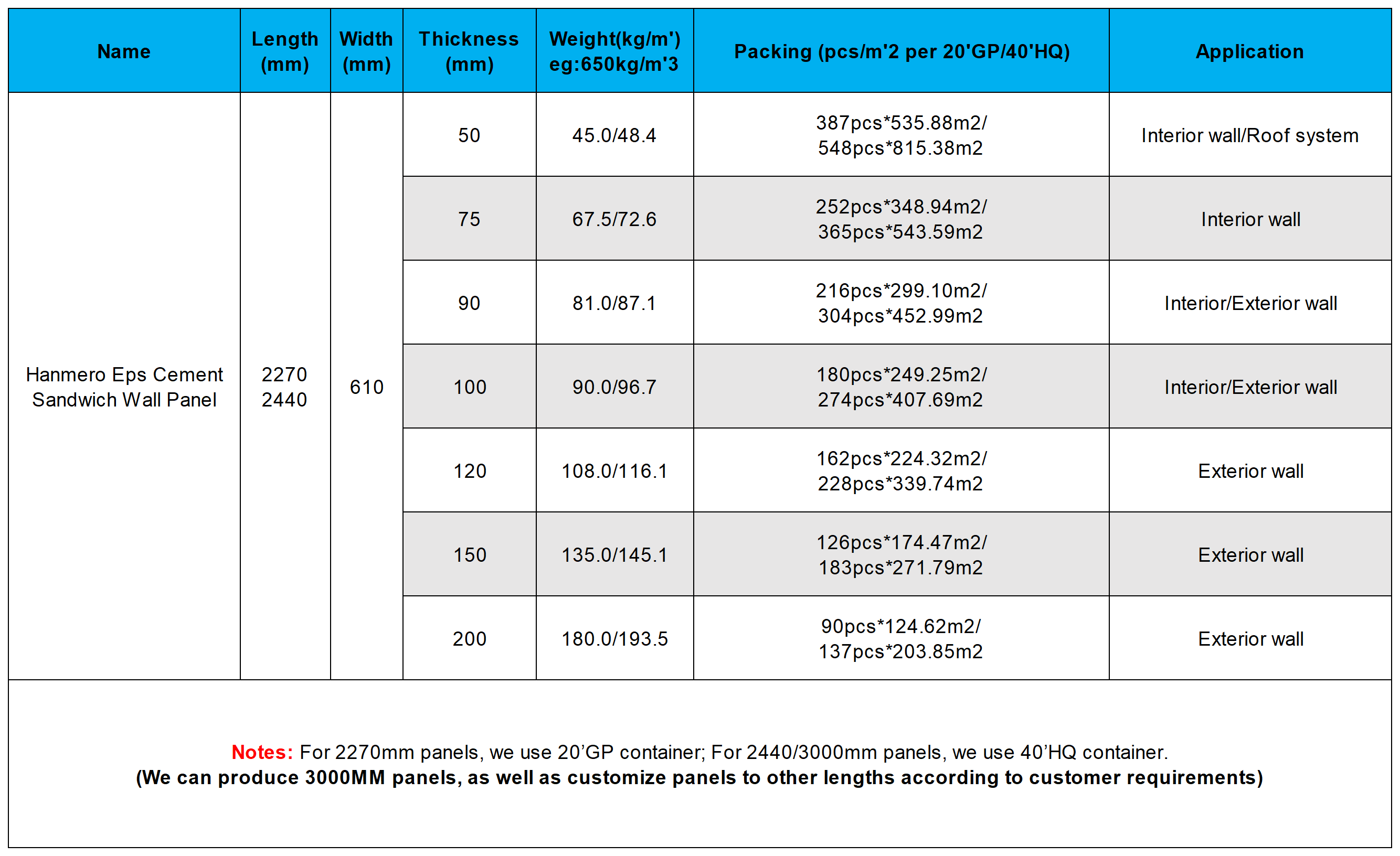

With finishes that require no additional plastering, these panels help maximize usable floor area. Available in a wide range of thicknesses—including 60mm, 75mm, 90mm, 100mm, 120mm, and 150mm—they offer tailored solutions to meet varying project requirements for both residential and commercial applications.

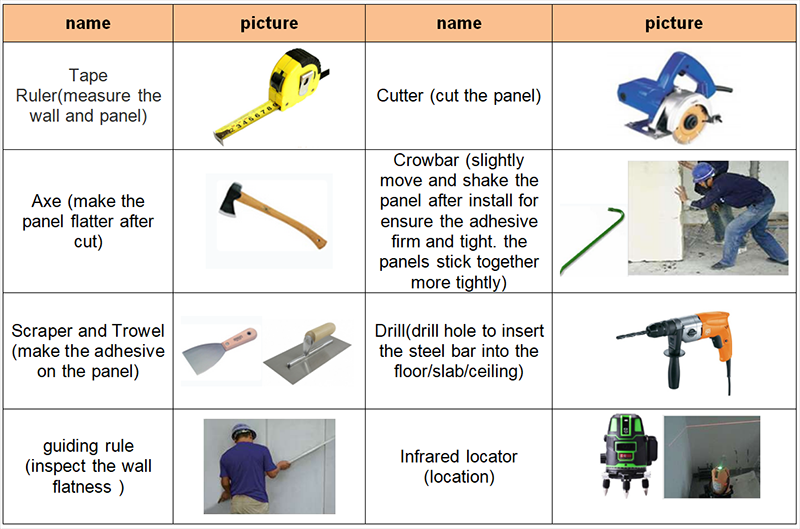

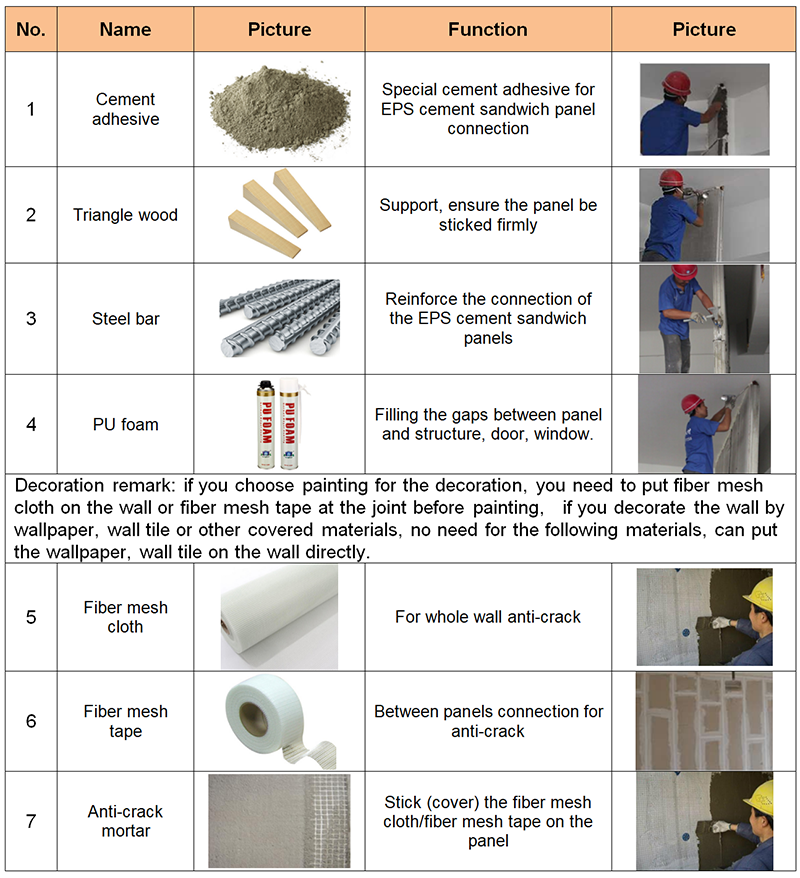

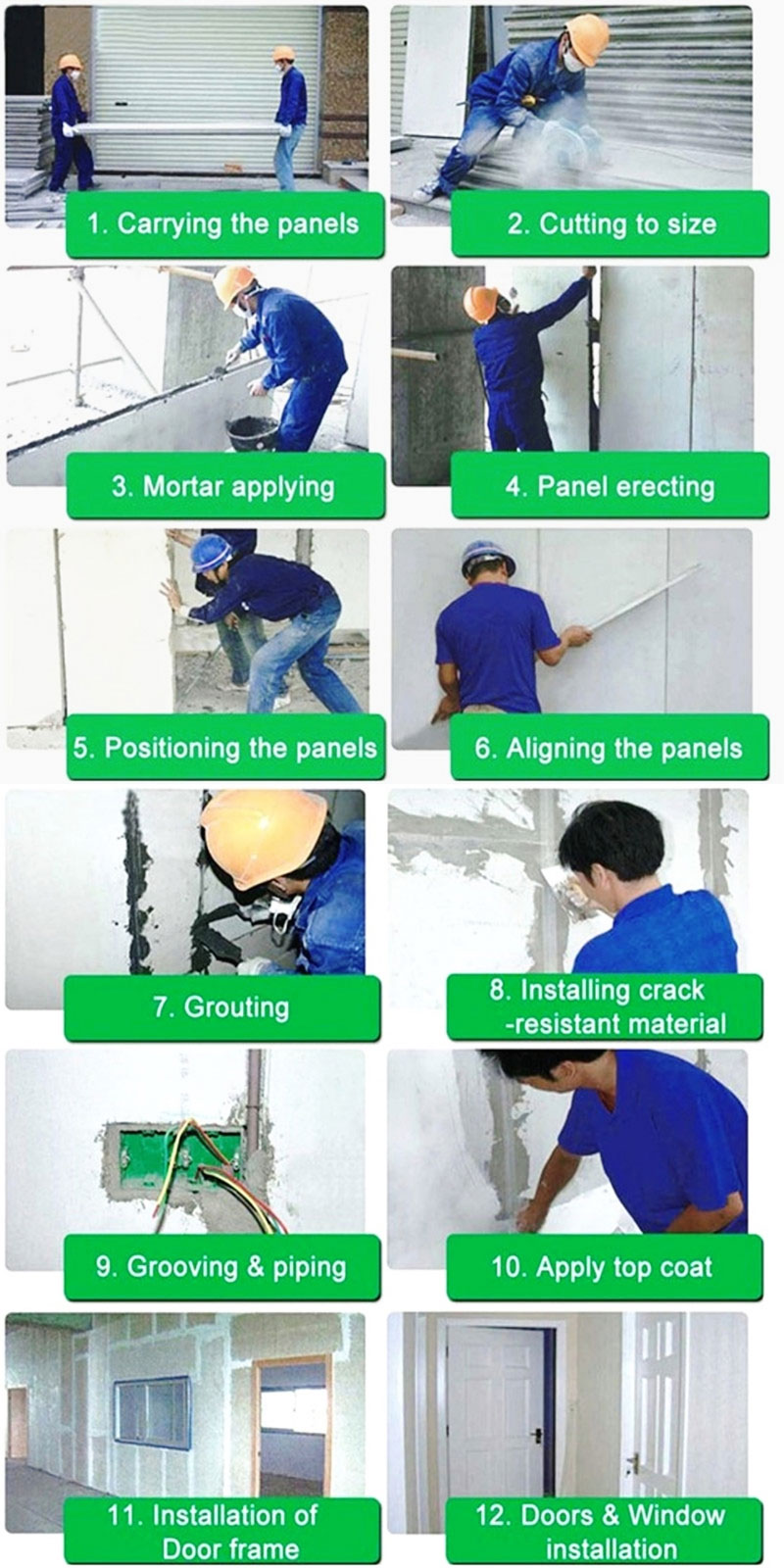

EPS Cement Sandwich Panel Installation Steps
1. Laser Positioning & Adhesive Application
2. Precision Cutting for Minimal Waste
3. Adhesive Application in Panel Grooves
4. Install, Align, and Secure the First Panel
5. Seal Gaps and Reinforce with Steel Bars
6. Curing and Crack Prevention
7. Electrical Grooving & Concealment
8. Apply Anti-Crack Reinforcement
9. Install Door/Window Frames
10. Final Decoration
Wuhan Hanmero Building Materials Co., Ltd. is a high-tech enterprise specializing in the design, research, development, production, and export of eco-friendly building materials, including wallpapers, custom murals, light weight composite sandwich panel, flexible tiles and related accessories, and ecological energy-saving integrated houses. Established in 2009, the company has its headquarters located in Wuhan City, the hub of nine provinces, with a production base in Hubei Jingshan Economic Development Zone that benefits from convenient transportation.
The company has a professional R&D team, and has collaborated with domestic universities such as Wuhan University of Science and Technology, Wuhan Institute of Technology, and Hubei University, to form a perfect management and R&D system. The company holds 28 international trademarks, 12 national patents, and has published 38 papers in professional journals, making it an international leader in the field of building materials.
At Hanmero, design, environmental protection, and quality are the three core concepts. The company is dedicated to serving customers wholeheartedly and promoting eco-friendly and energy-saving products and technologies in both the Chinese and international markets. Hanmero's unique technology and design, integrated with the concept of green ecology, are widely used in the decoration of homes, hotels, offices, schools, and office buildings.
FAQ
Q1: How long will it take for you to deliver the goods?
A1: Normally, we can deliver the order within 15-25 days after receiving the deposit payment. For urgent orders, we can speed up the production to meet the client's requirements. For large orders, we can discuss the delivery time further.
Q2: Can you provide samples for testing?
A2: Yes, of course. We can provide free small samples of the required thickness.
Q3: Do you have any certificates or qualifications?
A3: Yes, we have obtained CE & ISO certificates, as well as a full set of wall panel performance testing reports, including thermal insulation, soundproofing, strength testing, and fireproofing (our sandwich panel can withstand temperatures of up to 1000℃ for more than 4 hours).
Q4: What are the disadvantages of your sandwich panel?
A4: Our panel is a non-load bearing wall panel, so when building several floors or high-rise buildings, it must be combined with a steel structure or concrete structure.
Q5: Will the panel be damaged by climate change over time?
A5: Our panel will not be damaged by climate change or insects. However, for buildings with more than 2 stories or high-rise buildings, this panel needs to be combined with steel or concrete structures. The lifespan of the panel is about 50-70 years.
Q6: How do you guarantee the quality of your products, and is there a warranty available for the products we order?
A6: The physical properties of this panel will not change over time. Generally speaking, it may be damaged during transport, improper use, or man-made damage.
Q7: What is your recommendation for usage (for what kind of construction can each panel be used according to the thickness)?
A7: Roof: 60mm panel
Interior Wall: 60mm, 75mm, 90mm, 100mm
Exterior Wall: 100mm, 120mm, 150mm, etc.
(Note: this is only for reference. Different clients may have different requirements and practices.)
Q8: What is the thickness of the calcium silicate board independently?
A8: The thickness of the face board (calcium silicate board or fiber cement board) is about 4.5mm-5mm.
